Firebox

Favuseal Firebox

Favuseal Powered Firebox is an ultraslim and snug-fit solution that provides ultimate fire protection for piping system including flanges, valves, fittings, actuators, ESDV´s and other relevant equipment.

+170 °C

+80 °C

FAVUSEAL FIREBOX compared to EPOXY FIREBOX

The Favuseal Powered Firebox is designed applying the latest innovative fire protection technology. It utilizes Favuseal NKX-6174, a Polymer based passive fire protection material, extruded into sheets that are fitted onto the walls inside

of the metal enclosure (0,7mm AISI 316 SS) yielding an

ultra-slim fire protection solution.

FAVUSEAL FIREBOX

After fire exposure

EPOXY FIREBOX

After fire exposure

By using the Favuseal Powered Firebox, clashes are reduced to a minimum. The fire box is smaller than any other firebox found in the market place and it only expands marginally (8mm) inwards towards the object protected. More importantly, the tested explosion loads will remain intact over time. Some fireboxes utilizing two-component epoxy based paint will continue to cure/hardned over time after it has been installed causing them  not withstanding explosion loads very well.

In the event of a fire, the outer dimension of the Favuseal Powered Firebox remains unchanged during the pre- and post-fire stages.​ It delivers excellent performance by exceeding functional requirements under the various fire scenarios

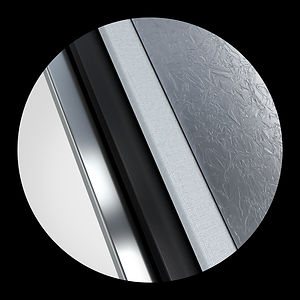

FAVUSEAL FIREBOX

Original thickness

Favuseal NKX6174

5mm or 8mm

X3M mat with aluminium foil 6mm

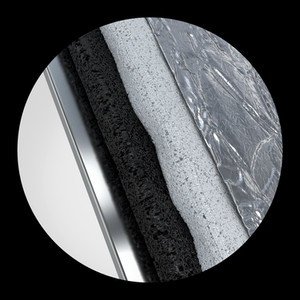

FAVUSEAL FIREBOX

After fire exposure

Max. 5 or 8mm

Expansion in case of a fire

​The Favuseal Powered Firebox can also be equipped with a drain plug to allow any fluid to be drained out and an optional inspection hatch.

The fire box is 100% compliant to NORSOK utilizing Favuseal, a Polymer-Based Fire Protection (PBFP) technology, and an aerogel mat. All testing has also been done in accordance with NORSOK requirements

The Favuseal Powered Firebox has been successfully tested to meet the highest NORSOK standards and all fire testing has been carried out with inspection hatch and fitted drain plugs. In addition to various explosion tests, it is certified to withstand a hydrocarbon pool fire (EN-1363-2), an ISO-22899-1 jet fire (250 kW/m2)  and a modified ISO-22899-1 High Heat Flux jet fire (350 kW/m2)
